Plastic ampoule filling sealing machine

This machine is suitable for the unit close of medicine, drinks, dairy products, health products, food, cosmetics, perfumes, agricultural medicine, fruit purees, etc.

Share this:
  • Product Description
Product Description

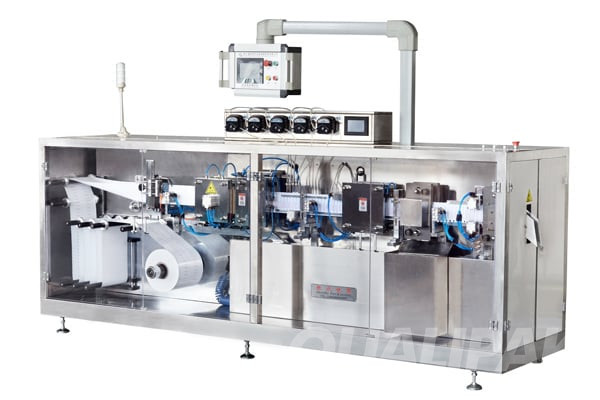

 Oral liquid Forming Filling And Sealing Machine

Introduction

This machine is suitable for the unit close of medicine, drinks, dairy products, health products, food, cosmetics, perfumes, agricultural medicine, fruit purees, etc.

 Features

A. HC high speed and high precision high-end motion controller, stepless frequency control of motor speed control, servo motor control tensile membrane devices.

B. The man-machine interface, device, operation is simple.

C. Automatic discharge volume, a roll of film cutting, can be folded in half, there are positive and negative photoelectric pattern of version of the function. Products elegant, meet high standards of packaging requirements.

D. Adopting electronic peristaltic pump device, and mechanical pump piston pump control. Adjustment is convenient. Filling accuracy is correct.

E. Filling does not drip, no bubble, no overflow.

F. Parts in contact with the medicine with high quality stainless steel 316L, machinery casings are all SUS 304 stainless steel, In line with the GMP standard.

G. Saving films

H. Machines can fission, convenient transportation and easy into the workshop.

Main Technical Data

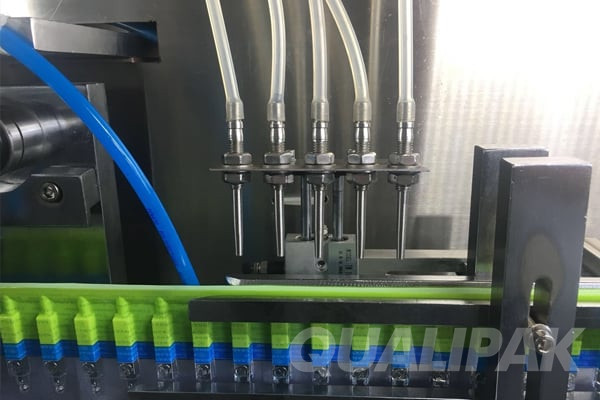

Filling needles

5 heads

Max forming depth

12mm

Cutting frequency

1-25 Times

Film materials

PVC/PE etc(0.2-0.4)×240mm

Capacity

6000 bottles per hour

Filling range

1-50ml

Installed power

6.5kw

Voltage

220v or 380v/50Hz (up to client's request)

Weight(kg)

1200kg

Outer Size L×W×H(mm)

3200×850×1400(mm)

Main parts specification

Name

Model

Origin – Brand

QTY

PLC

TM241C40T

Schneider

1

Touch screen

HMIGXU3500

Schneider

1

Modular

TM3TI4

Schneider

1

Communication cable

XBTZ9008-3M

Fanuc

1

Inverter

ATV12HU15M2

Schneider

1

Contactor

LC1E1210M5N

Schneider

1

Relay

RXM2LB2BD/RXZE1M2C

Schneider

2

Circuit breaker

OSMC32N4C40

Schneider

1

Circuit breaker

OSMC32N1C10

Schneider

4

Switching Mode Power Supply

ABL2REM24020H

Schneider

1

Emergency stop button

XB2BT42C

Schneider

1

Solid state relay

MGR-1D4825

Mager

4

Cooling fin

I-50

Mager

4

  Enlarged edition

S40194N-D24

China

2

Encoder

RI41-0/360ER

Danaher

1

Photoelectric switch

TL-Q5MC1-Z

OMRON

1

Approach switch

LJ12A4-4-Z/BX Plastic

China

2

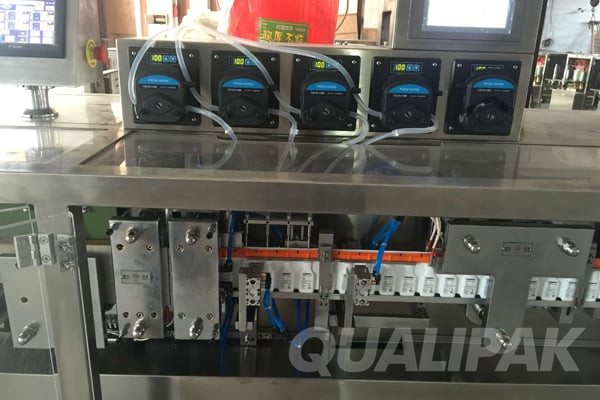

Electronic peristaltic pump



China

1

Servo motor



Schneider

1

Eyemark sensor



SICK

1

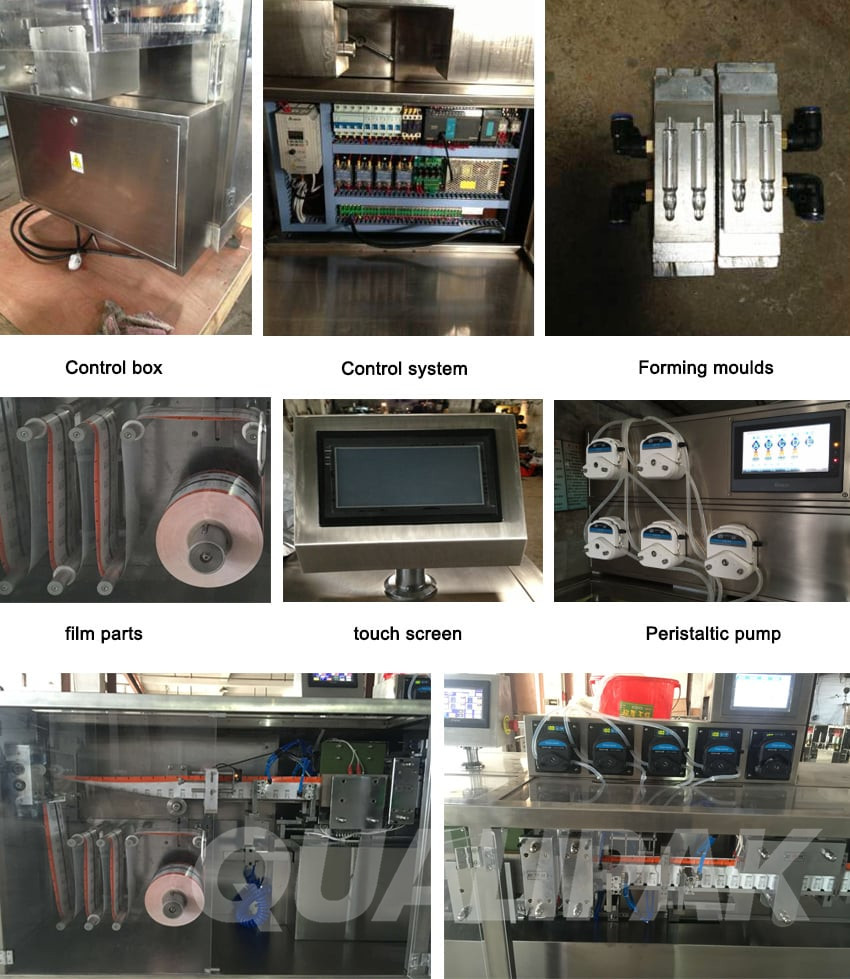

Machine details

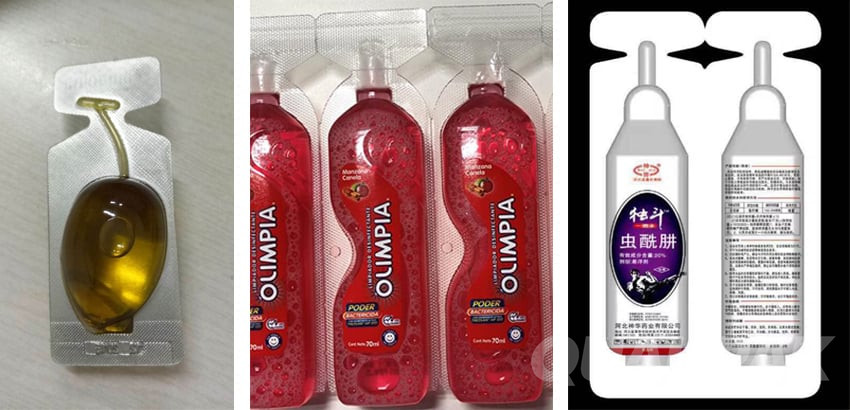

Samples

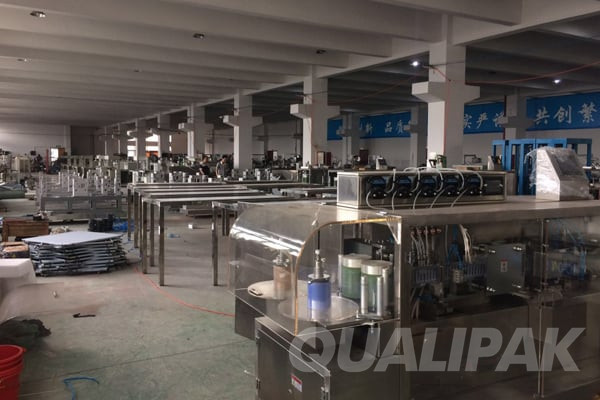

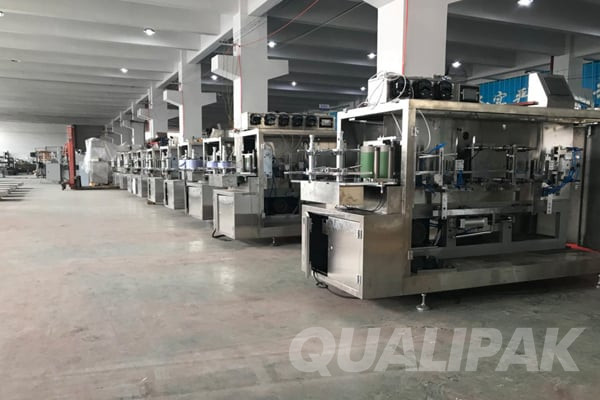

Our facotry
