filling packing machine

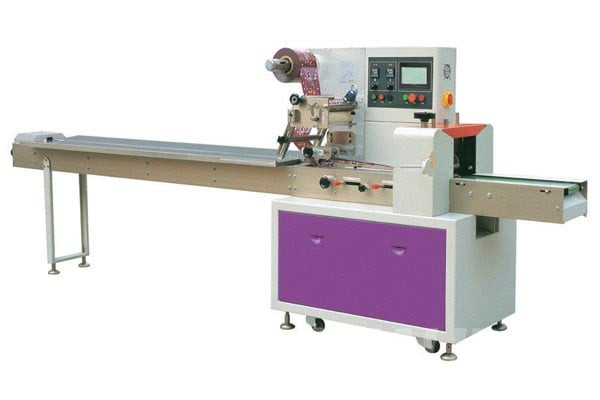

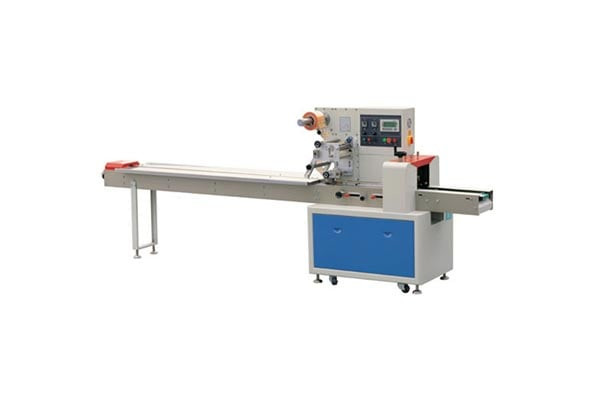

Flow wrapping machine

Various kinds of objects with regular shape like biscuits, instant noodles, towels, bread, cakes, pies, candy, ice-cream, medicine, commodity, hardware, detergent, industrial components etc.

Share this:
  • Product Description
Product Description

Applications:

Various kinds of objects with regular shape like biscuits, instant noodles, towels, bread, cakes, pies, candy, ice-cream, medicine, commodity, hardware, detergent, industrial components etc.

Descriptions:

1. Dual frequency conversion control, bag length can be set and cut on one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packing different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.

Technical parameters:

  QP-250B QP-250D
Bag length 65-190 or 120-280mm 90-220mm
Bag width 30-110mm 30-110mm
Product height Max 40mm Max 55mm
Film width Max 250mm
Film roll diameter Max 320mm
Packaging speed 40-230bag/min
Packaging material OPP,CPP,PET,AL,Other Laminated films
Powder 220V  50/60HZ  2.4KW
Machine size (L)3770 x (W)670 x (H)1450 mm
Machine weight 800 kg
Remarks Optional air filling device

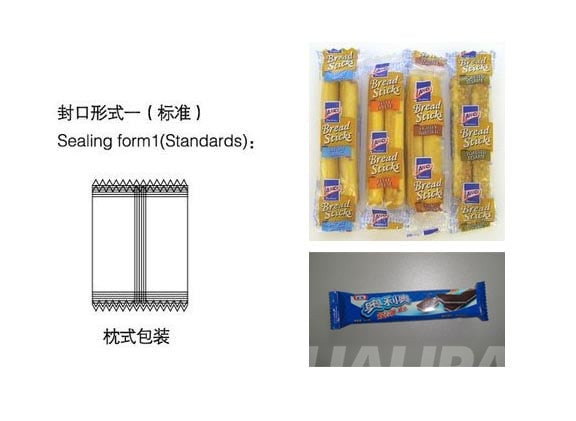

Bag type:
