filling packing machine

Inner outer tea bag packing machine

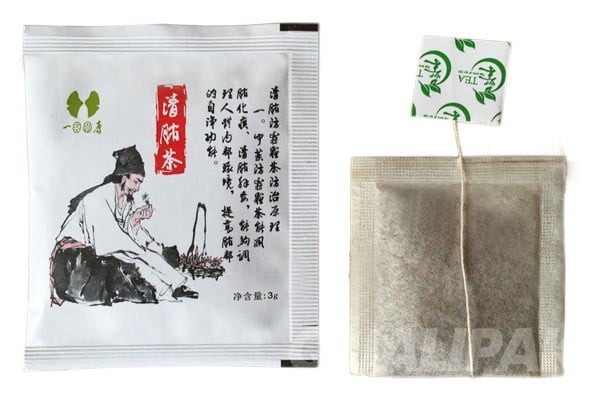

The inner and outer bag is formed at the same time, avoid your direct contact with the packing material and improve working efficiency. Inner bag is made of filter paper with thread and tag attached, and outer bag is made of composite paper.

Share this:
  • Product Description
Product Description

Application:

It is suitable for inner and outer teabag packing of small granular products, such as tea leaves, medicinal tea and health care tea, etc.

Features:

1. This machine is an automatic multi-functional tea packaging equipment with a new heat sealing type.

2. The inner and outer bag is formed at the same time, avoid your direct contact with the packing material and improve working efficiency. Inner bag is made of filter paper with thread and tag attached, and outer bag is made of composite paper.

3. The biggest advantage is: tag attaching and outer bag making can adopt photoelectric positioning.

4. Packing capacity, inner bag and outer bag size can be easily adjusted according to different requirements in order to achieve the best packaging results, improve product appearance and enhance the value of the product.

Technical data:

Machine type:

Tea Bag Packing Machine Series

Machine model:

QP16

Machine name:

Automatic Cup Filler Tea Bag Packing Machine

(with Outer Envelope, Thread and Tag)

Packing material:

Paper/Plastic,Plastic/Plastic,Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Tea filter paper, Thread, Tag paper.

Measuring:

Measuring cup filler

Filling range:

3~15ml

Packing speed:

40~60 bags/min

Tag size:

L:20~24mm , W:40~55mm

Thread length:

155mm

Inner bag size :

L:50~70mm , W:40~80mm

Outer bag size :

L:70~120mm , W:60~90mm

Power supply:

220V, 50HZ, 3.7KW

Machine dimension :

1250*700*1800mm(L*W*H)

Machine weight:

500KGS
