Pyramid tea bag packing machine

Adopts ultrasonic sealing device. It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.

Share this:
  • Product Description
Product Description

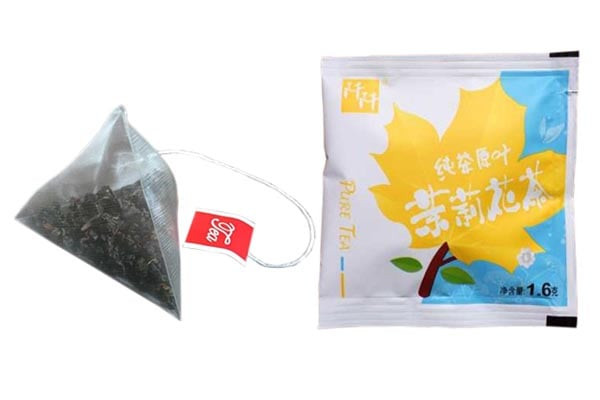

 Automatic Pyramid Tea Bag Packing Machine with Outer Envelope

Application:

It is suitable for various products packing, such as leafy tea, loose tea, diet tea, herbal tea, health care tea, flower tea , ground coffee, and so on.

Features:

1. Adopts ultrasonic sealing device. It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.

2. The process of bag making, measuring, filling, sealing, cutting and counting can be done automatically.

3. The packing capacity, the size of inner bag, outer bag can be easily adjusted according to different requirements.

4. The machine body and all components in direct contact with products are made of SUS304 stainless steel.

5. It is very easy to operate and maintain.

6. Optional device: date code printer.

 Technical data

Product name

Pyramid Tea Bag Packing Machine

Packing speed

30~50bags/min

Filling range

1~10g

Accuracy

±0.1g/bag

Feeding system

4 / 6 / 8 head electronic weigher

Material shape

10㎜-20㎜,stick or slice, irregular shape

Packing material

Nylon, Non-woven mesh,PET, PLA

Width of the material

140 / 160 / 180mm

Bag size

Pyramid: 50-80mm (each edge)

Flat bag: 40-80 (L) x 60-80 (W) mm

Inner and outer diameter of material

Inner : Φ76㎜  Outer : ≤Φ300㎜

Power supply

Electricity: 220 V / 1.5 kW

Compressed air: ≥0.6Mpa

Sealing method

Sealing and cutting by ultrasonic



Product name

Outer Bag Packing Part

Capacity

30-55bags/min

Range Of Measurement

Customize according to product

 Bag Size

(Length):90-120mm

(Width):80-100mm

 Sealing Form

 Three-side sealing / center sealing

 Supply Voltage

220V, 50~60Hz

Packaging Materials

 Plastic film, Paper, etc

 Dimensions (L*W*H)

1800*80*1550mm

1000*750*1550mm

1800*300*400mm
