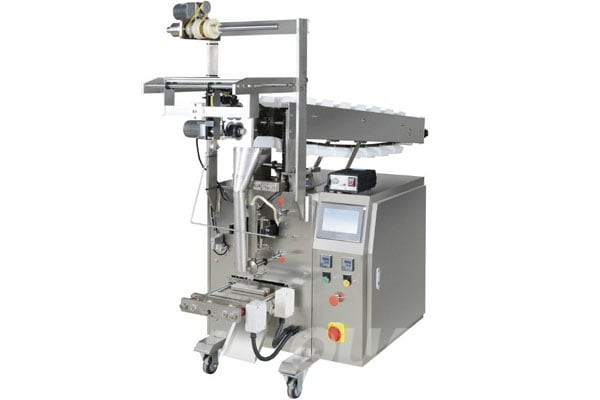

QP-160B Chain bucket Packing Machine

Applications:

Solid material which shape is roll, grain or slice. Such as puffed food, shrimp slice, peanuts, popcorn, chocolate, seeds, oatmeal, coffee, white sugar, electuary and solid beverage etc.

Features:

1. Simple operation

2. Easy maintenance

3. Durable

4. Efficient follow-up service

*** CE CERTIFICATE***

Descriptions:

High precision, high efficiency without crash the materials.

Full automaticity. The machine complete the whole procedure of feeding, measuring, bagging, date printing, charging, product out put automatically.

High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

Specifications:

Type	QP-160B
Film width	320mm
Packing material	OPP/CPP,OPP/CE,PET/PE
Film roll diameter	Max.300 mm
Packing speed	30-100 bags/min
Bag size	(L)30-200 mm  (W)50-150 mm
Measuring range	50-500ml
Power	220V,50HZ,2KVA
Machine size	(L)1100×(W)755×(H)1730
Machine weight	300Kg

Packing sample:
