QP-2 Automatic Cup Filling And Sealing Machine

This machine is specially designed for liquid and semi-liquid products to be filled and sealed with plastic cup.
Our cups filling and sealing machines applied with world famous electrical and pneumatic components. All the parts of machine contact with powder are made of stainless steel.

Share this:
  • Product Description
Product Description

Introduction

This machine is specially designed for liquid and semi-liquid products to be filled and sealed with plastic cup.

Our cups filling and sealing machines applied with world famous electrical and pneumatic components. All the parts of machine contact with powder are made of stainless steel.

Note:

1, Your machine will be produced according to your requirements, picture for reference only.

2, According to the customer request, provides the special design.

3, The machine disposition may make the choice.

Working Process

Cup loading

       Cups loading one by one;

       Pneumatic cylinder control;

       2 cups loading holes in one line.

Filling

       Easy to open and close for each tank.

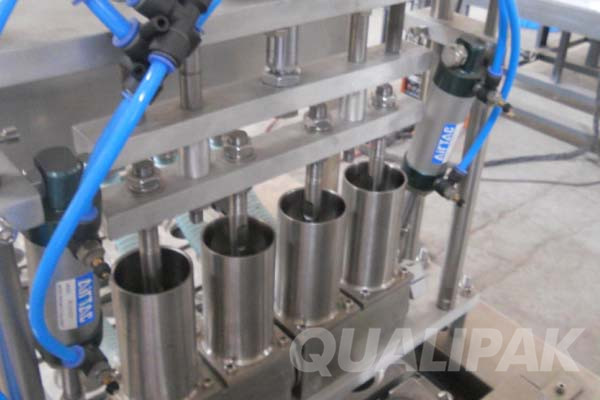

       Piston filling type for each filling head.

       All parts/tubes in contact with the product are         made of SUS-304.

UV sterilization

       Sterilize cups and products.

Loading foil

       Suck and pick foils by vacuum;

       Pneumatic cylinder control;

       2 silicone suckers.

First sealing

       2 copper sealing heads;

       Temperature is adjustable: 0-400°C;

       Pneumatic cylinder control.

Second sealing

       2 copper sealing heads;

       Temperature is adjustable: 0-400°C;

       Pneumatic cylinder control.

Sealed cup pushing out

       Finished cup pushed to a small platform.

Technical Parameters

Model

QP-2

Filling nozzle

2 pieces

Capacity

1800 cups/hour

Power

3 kw

Air

0.65 m3/min

Power source

AC 380V 50HZ 3 phases

temperatuer

0-400 degree centigrade

Weight

600 kg

Dimension

(L)2200*(W)600*(H)1700 mm

Wooden

(L)2300*(W)700*(H)1850 mm

The frame made of U-steel and antirust paint, then cover by SUS-304.

Part Lists

Parts

Brands

Solid-state relay

MEGA(China mainland)

Cylinder

SMUK(China mainland)

Electronic valve

SMUK(China mainland)

Temperature controller

CHIN(China mainland)

Proximity switch

Schneider (France)

Electronic switch

Schneider (France)

Motor

Wannan(China mainland)

Reducer

Intalok(China mainland)

Slicer

JinXiu(China mainland)

SMPS

Meanwell(China mainland)

Intermediate relay

Omron(Japan)

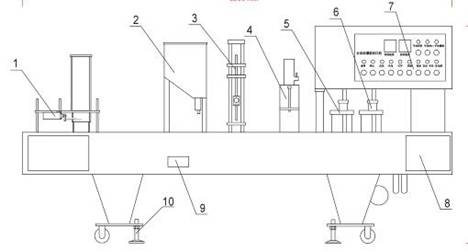

Structure (Reference only)

1

Cups loading system

6

Second sealing

2

Filling hopper

7

Control box

3

Filling system

8

Driving system

4

Foils loading system

9

Liquid waste exit

5

First sealing

10

Supporting foot

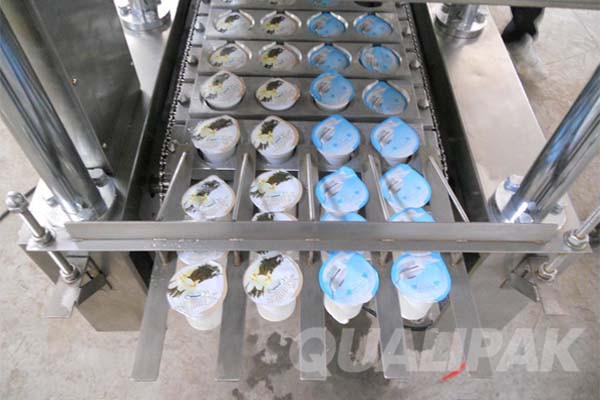

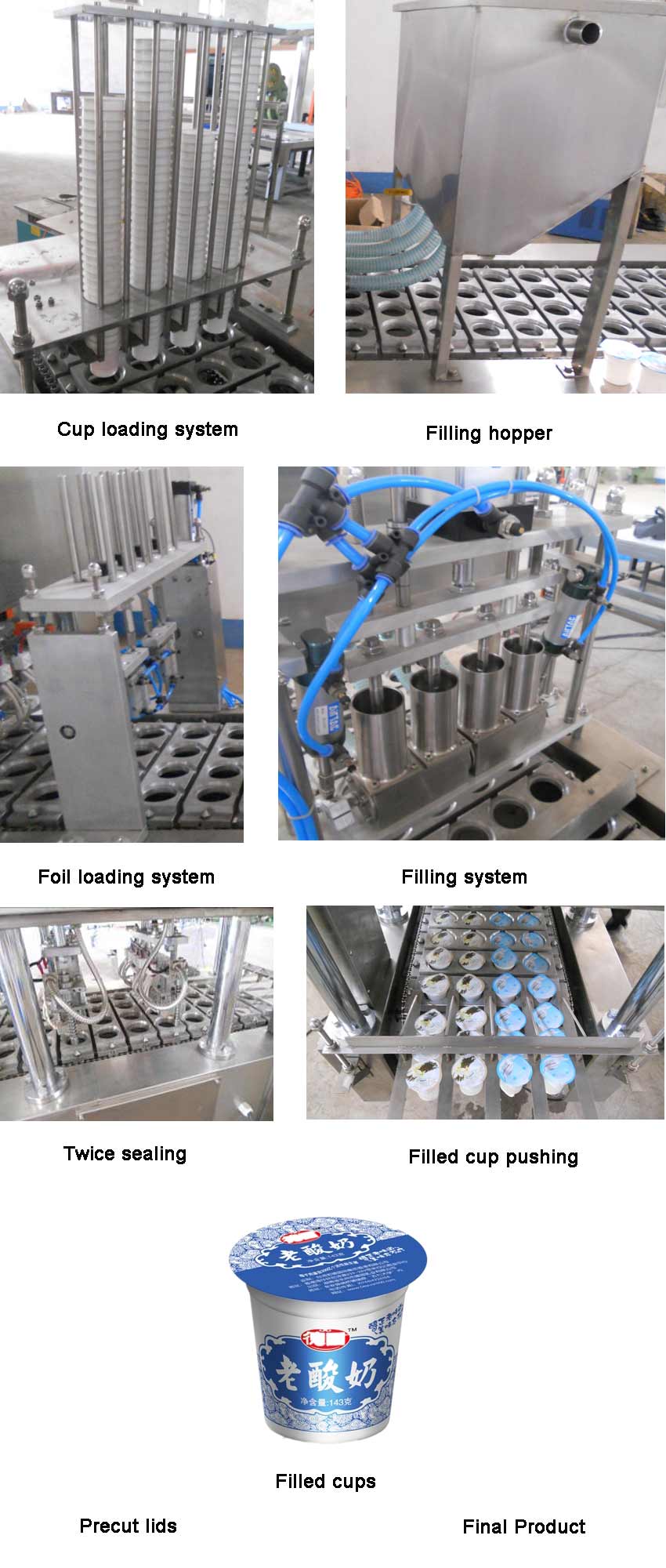

Photos

Quality Assurance

Each machine is manufactured by our professional workers.

Each machine with a strict inspection before out of storage.

Each machine use a large number of 304 stainless steel.

Each machine use good quality electric elements.

After-sales service commitment: after one month, 3 months… we will have return visiting by phone or mail.

The warranty time is one year.

Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients pay for the freight of round-trip.

Beside the warranty days, we continue to provide life-long maintenance services.

Packing List

Name

Model

Quantity

Filling Sealing Machine



1

Operation Instruction



1

Manufacturer Certificate



1

Hexagon Ring Spanner

M4

1

Hexagon Ring Spanner

M5

1

Hexagon Ring Spanner

M6

1

Hexagon Ring Spanner

M8

1

Hexagon Ring Spanner

M10

1

Six Angle Wrench

14—17mm

1

Six Angle Wrench

19—22mm

1

Six Angle Wrench

24—30mm

1

Cross Screwdriver

6 inches

1

Straight Screwdriver

6 inches

1

Thermocouple

K type 1.0m

1

Electrical Heated Tube

Ф12×70 220V 180W

2
