QP-400 shisha packing machine

The machine for food, medicine, chemicals, hardware, agriculture, health care products, shisha tobacco and other items with viscous but bad flowing ability.

Share this:
  • Product Description
Product Description

Applications:

The machine for food, medicine, chemicals, hardware, agriculture, health care products, shisha tobacco and other items with viscous but bad flowing ability.

Like: prepared opium paste, Hookah cream, shisha, Arabia shisha, Turkish shisha, Arfak hookah, 50 gram small scale shisha, large scale shisha, fruit smell shisha.

Characteristic:

  • Micro-computer controller, big interface screen with high level of intellectual and automatic.
  • High precision of bag making by stepless adjustment of bag length. Easy for operation.
  • Thermocouple sampling adopted, digital conversion, Temperature compensation technology. It makes temperature stable and sealing more precisely.
  • Pneumatic module sealing technology adopted, which makes sealing edge neat and flat.
  • Adjustable air exhaust device adopted, which increase exhaust efficiency.
  • cellular machine structure, which makes it convenient to change spare parts.
  • New Horizontal Screw metering mechanic structures, which solves the high hardness of viscous paste material measurement problems
  • New horizontal mixing device adopted, better than vertical type.
  • Piston filling system, which make hard & high viscous materials fall smoothly into bag.

Technical parameters:

MODEL

QP.G-400

QP.G-400

QP.G-400

QP.G-400

Filling range

(ml)

50g

100g

250g

500g

Bag size

(mm)

L:70-150

W:60-80

L:80-200
W:60-180

L80-200
W60-180

L:120-200
W:180-260

Max speed

(bag/min)

20-40

20-40

15-30

10-20

Power

(kw)

2.0

2.0

25

2.5

Machine dimension

(mm)

1040*600*2040

1400*700*2290

1400*700*2290

1550*780*2360

Machine weighet

(kg)

300

300

350

400

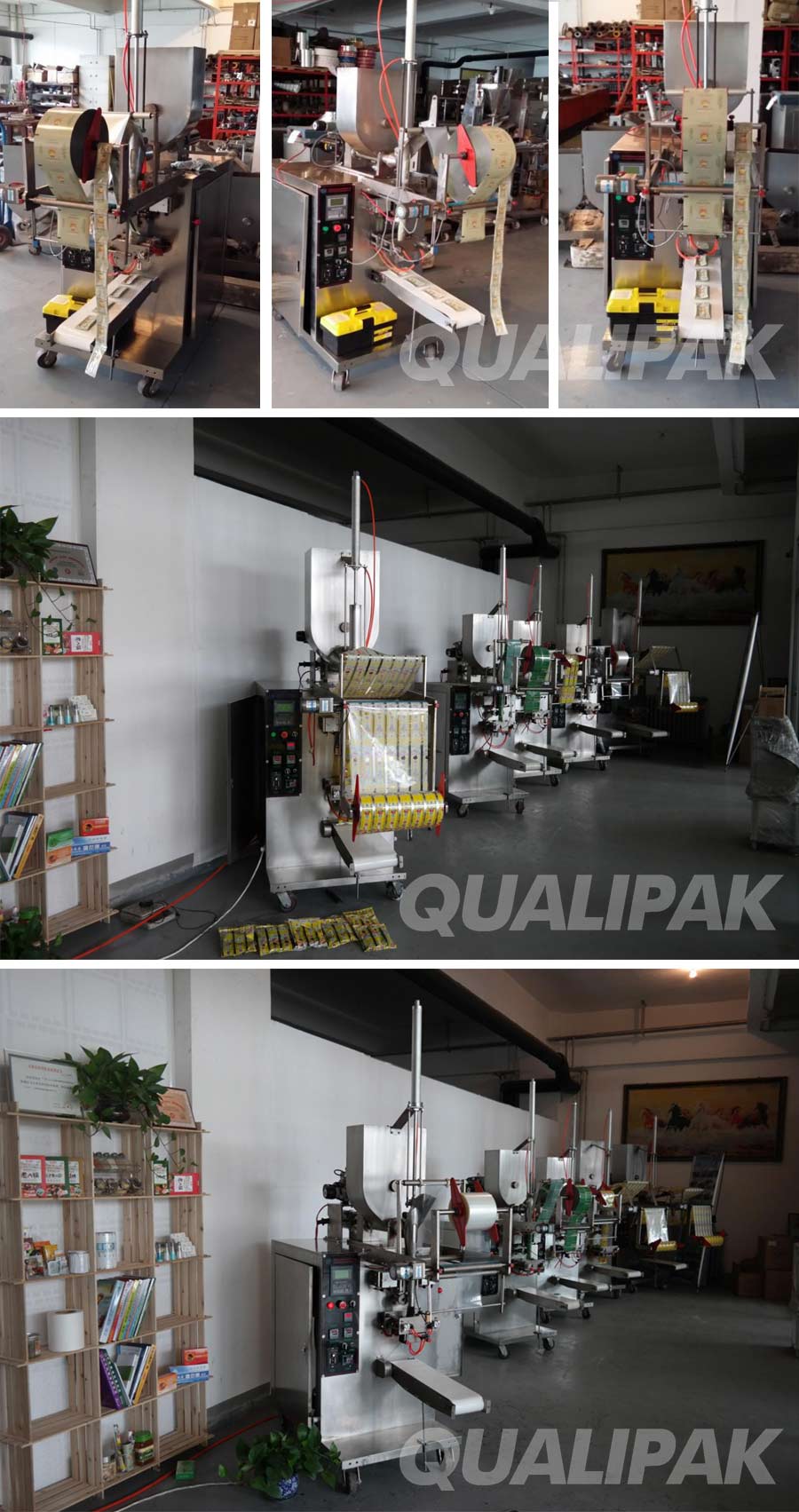

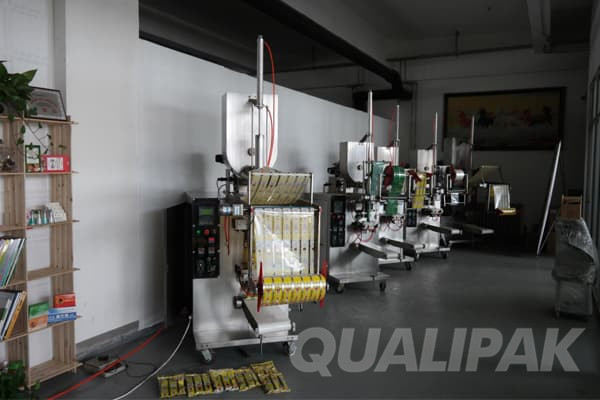

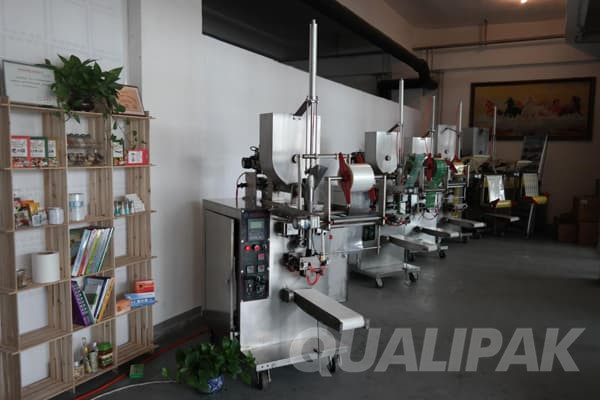

More machine pictures:

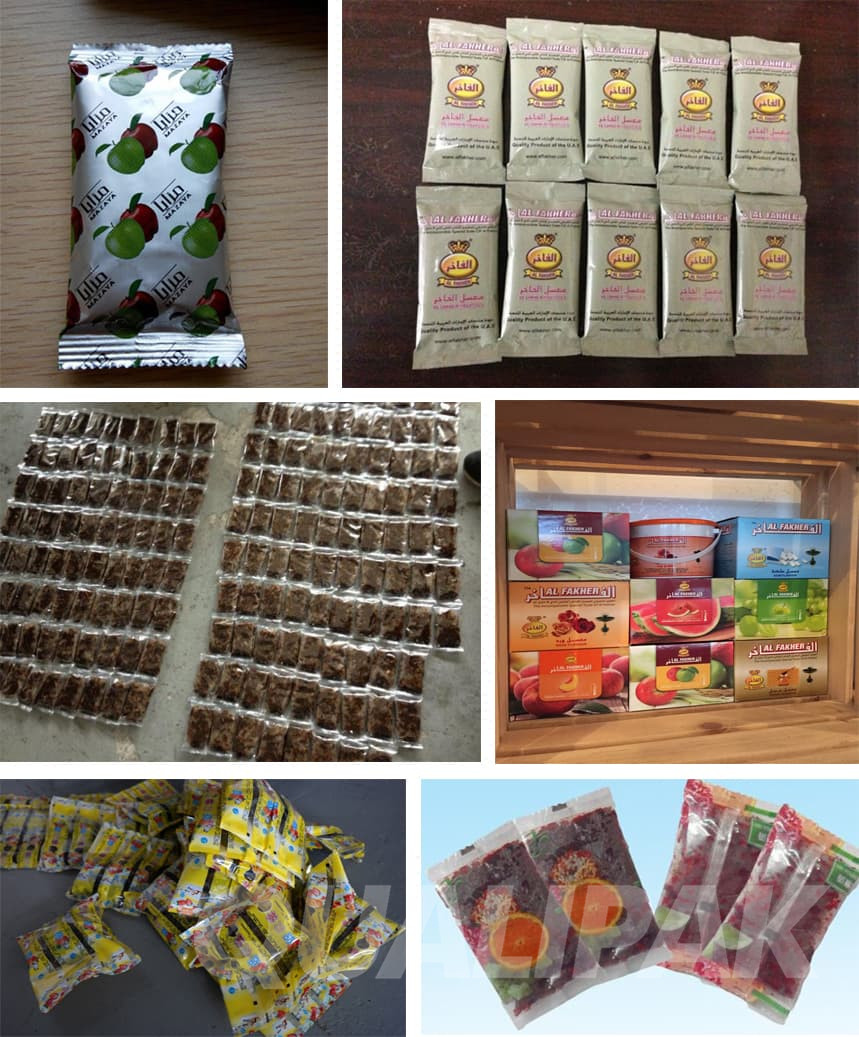

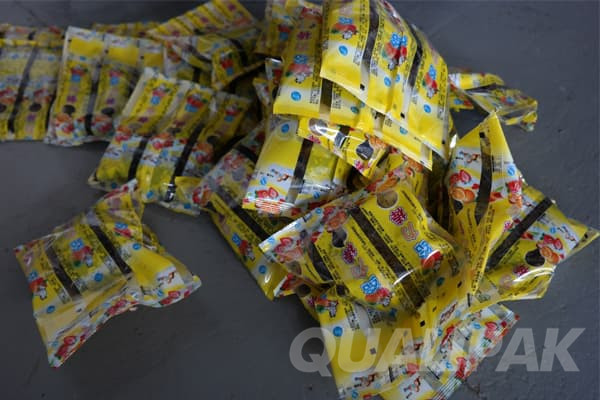

Packing Samples:
