filling packing machine

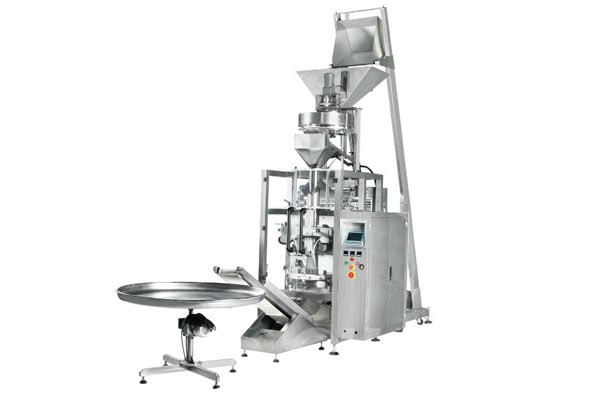

QP-420/520/720BZ Vertical Packing Machine

Full automaticity. The machine complete the whole procedure of feeding, measuring, bagging, date printing, charging, product out put automatically. The volumetric cups can be make to open-close model measure equipment.

Share this:
  • Product Description
Product Description



Applications:

It suitable for bulk grain, short bar objects such as puffy food, shrimp chip, rice, seed, peanut. etc.

Descriptions:

High precision, high efficiency without crash the materials.

Full automaticity. The machine complete the whole procedure of feeding, measuring, bagging, date printing, charging, product out put automatically.

The volumetric cups can be make to open-close model measure equipment.

Specifications:

Type

QP-420BZ

QP-520BZ

QP-720BZ

Film Width

Max.420mm

Max.520mm

Max.720mm

Bag length

80-300mm

80-400mm

80-300mm

Bag width

60-200mm

60-250mm

60-200mm

Packing speed

5-30 bags/min

5-50 bags/min

5-50 bags/min

Filling range

150-1500ml

3000ml

6000ml

Power

220V, 50/60Hz, 2.2KVA

220V, 50/60Hz, 4KVA

220V, 50/60Hz, 5KVA

Machine size

(L)1217×(W)1015×(H)1343

(L)1217×(W)1795×(H)1650

(L)1780×(W)1350×(H)1950

Machine weight

540Kg

600Kg

900Kg



Sample type:

Packing sample:
