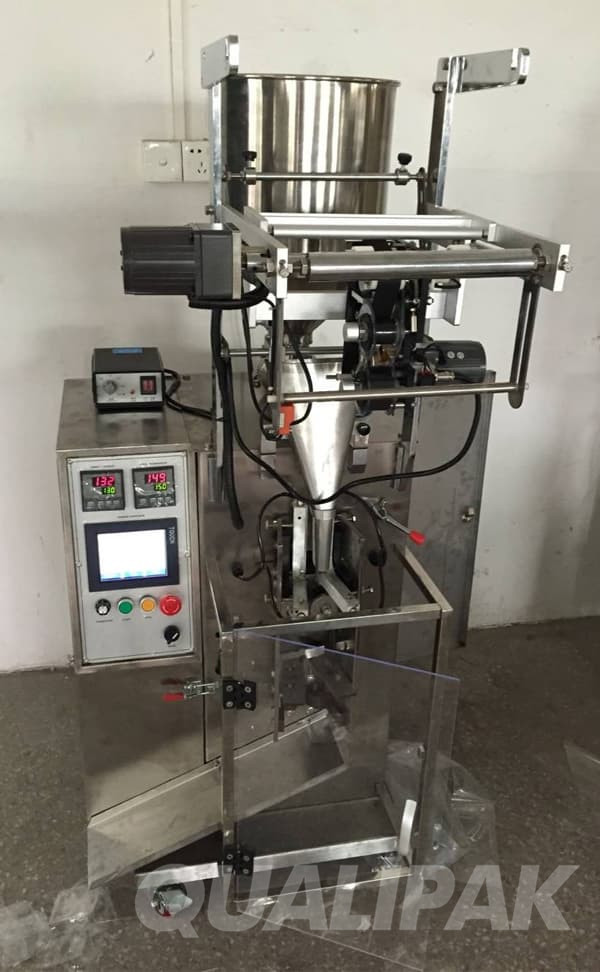

QP-C60J Paste Packing Machine

Suitable for automatic packing of shampoo ,shower gel,skin lotion,tooth paste,cosmetic cream,mayonnaise,fruit jam,edible oil,soy sauce,vinegar,ketchup,spaghetti sauce etc,in nonvis cous liquid and visoucs fiuid state.

Share this:
  • Product Description
Product Description

Applications:

Suitable for automatic packing of shampoo ,shower gel,skin lotion,tooth paste,cosmetic cream,mayonnaise,fruit jam,edible oil,soy sauce,vinegar,ketchup,spaghetti sauce etc,in nonvis cous liquid and visoucs fiuid state.

Features:

1. Simple operation

2. Easy maintenance

3. Durable

4. Efficient follow-up service

Descriptions:

1. Chinese and English display screen control system, including stainless steel body, just at the display setting unit to set the parameter ( like filling quantity bag length), the control system will automatically optimize matching the actions, thus achieving the best packing speed.

2.  Double light source photoelectric detection system is stable and reliable, and ensure complete the logo of the packaging bags.

Intelligent temperature control system. Automatic completion of bag-making, measuring, filling, sealing, printing batch number, cutting and counting etc, all of work; Adopt the three side-sealing, double-sided heating or four side-sealing and heating mode.

Specifications:

Type

QP-C60J

Film width

200mm

Packing material

OPP/CPP,OPP/CE,PET/PE

Film roll diameter

Max.300 mm

Packing speed

30-100 bags/min

Bag size

(L)30-150 mm  (W)50-100 mm

Measuring range

1-80ml

Power

220V,50HZ,2KVA

Machine size

(L)900×(W)680×(H)1960

Machine weight

300Kg

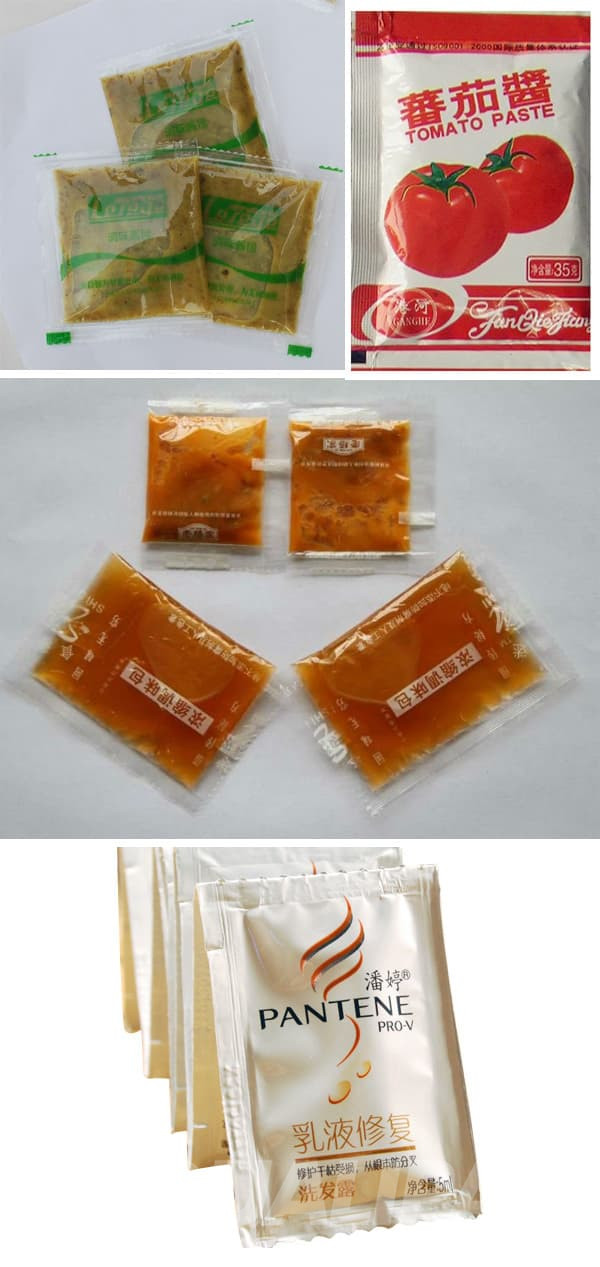

Packing Samples:
