filling packing machine

Stand Up Pouch Filling Capping Machine

Your machine will be produced according to your requirements, picture for reference only. According to your requirements, we provides the special design. The machine disposition may make the choice.

Share this:
  • Product Description
Product Description

Introduction

YSW-4A automatic filling capping machine is in order to meet the new century, the market demand of self-developed technology of large gland device. Its advanced design, processing means to close, the strict quality inspection. At the same time, our company can also according to the different requirements of customers to increase other functions, such as connecting CIP cleaning, pouch discharging-liquid level controlling, off the bag conveyor, PLC control system, to meet customer demand. The product has good appearance, practical, complete machine are made of stainless steel, meet the national health and safety standards, you can use it at easy.

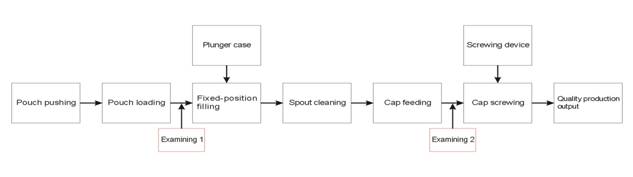

Working Process



Examining 1: While the machine is examining the pouch’s position whether good or not, if not, the corresponding filling head won't work.

Examining 2: While the machine is examining the cap whether steady or not, if not, it will start alarm and refuse to work.



Technical parameters

Model

QP-4A

Filling Nozzle

4 pieces

Packing Speed

3000-4000 bags/Hour

Volume

Max 300ml Or customize

Power

1.5 kw

Voltage

380V/3Phases/50HZ Or customize

Air Pressure

0.5-0.7Mpa

Air Consumption

0.7 m3/min

Dimension

Main Machine: (L)2200*(W)1460*(H)2150mm

Send bag holder: (L)2200*(W)400*(H)1600mm

Wooden Box

 (L)2300*(W)1560*(H)2250mm

 (L)2300*(W)500*(H)1800mm

Weight

1800kg

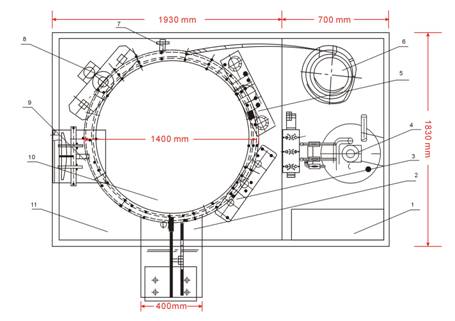

Structure

1

Electrical Appliance Case

7

Photoelectric Device

2

Pouch Carrier

8

Cap-screwing Device

3

Filling Device

9

Finished Product Exit

4

Charging Basket

10

Turntable

5

Cleaning Device

11

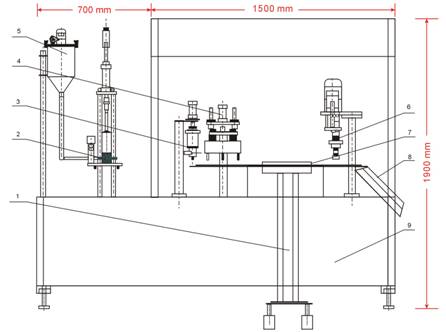

Structure

6

Cap Sorter Device





1

Pouch Carrier

6

Cap-screwing Device

2

Filling Device

7

Turntable

3

Plunger Case

8

Finished Product Exit

4

Cleaning Device

9

Structure

5

Charging Basket

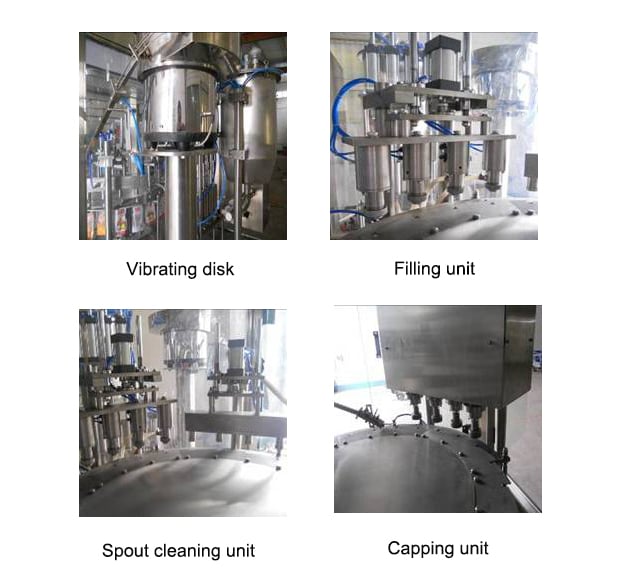

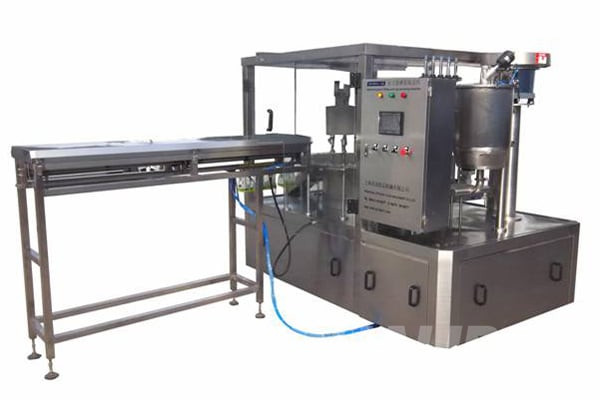

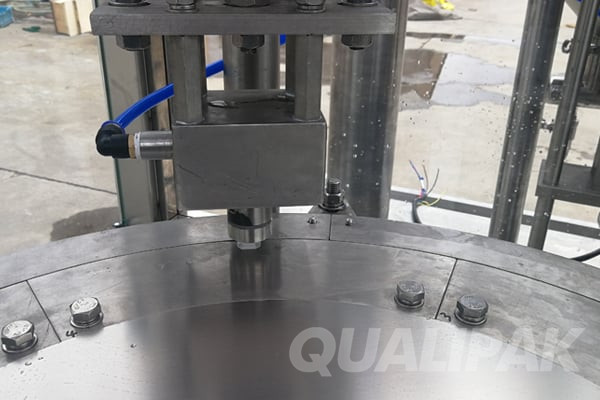

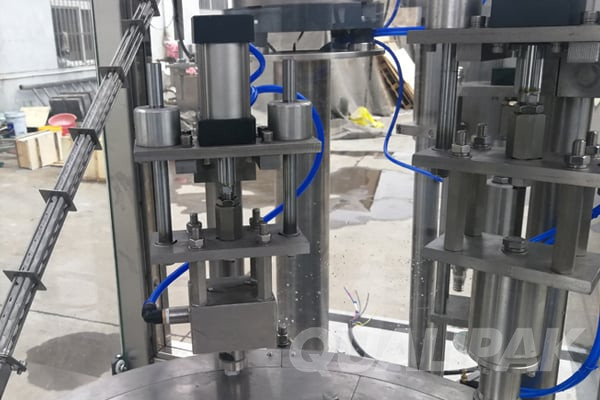

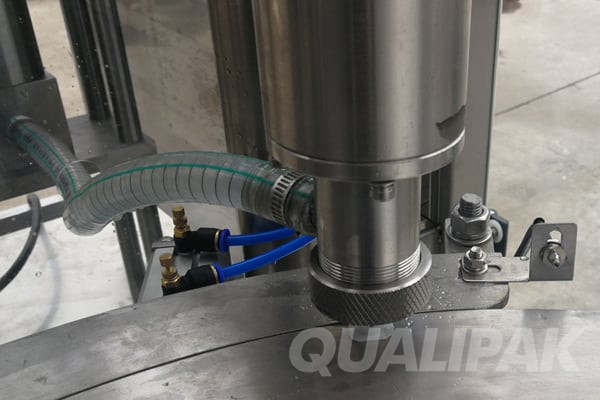

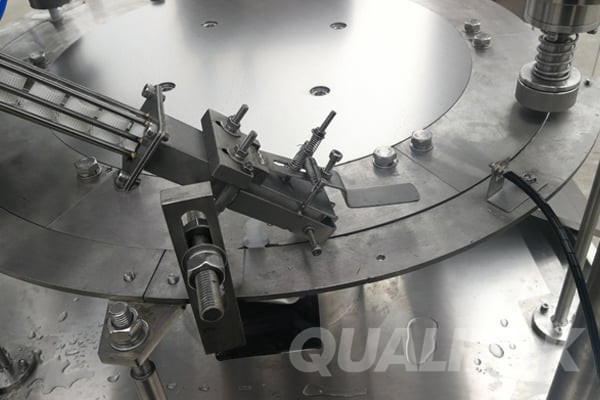

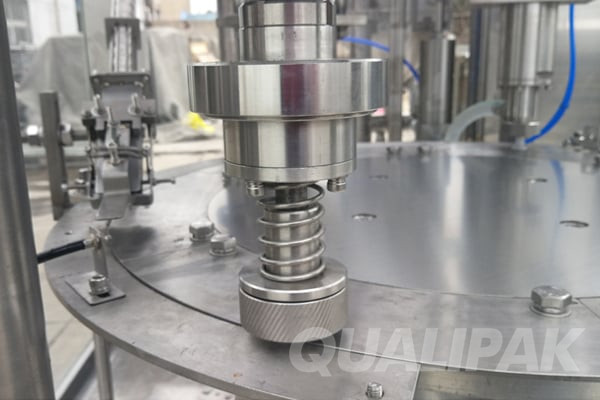

Photos

Parts



Name

Brand

Country/Region

Power

Reducer

Jiahe

China

Motor

Mitsubishi

Japan

Air

Cylinder

AIRTAC

Taiwan

PLC

Siemens

Germany

Touch screen

Siemens

Germany

Solenoid value

AIRTAC

Taiwan

Electric

Encoder

Omron

Japan

Frequency Converter

Schneider

France

Photoelectric Detector

Omron

Japan

Switches

Schneider

France

Electric Contactor

Schneider

France

Relay

Omron

Japan
