Horizontal form fill seal machine



YSW-180SZ Doypack Machine With Servo Auger Filler

QP-180 Horizontal Automatic Packaging System Configuration

The QP-180 Packaging Line includes:

1. One set of QP-180 packaging main machine

2. One set of Zipper Forming Device

3. Two sets of Servo Auger Filler

4. One set of Thermal Printer

5. One set of Dust Collector TOUER-10

6. One set of 500L V-Shape Tank with Mixer

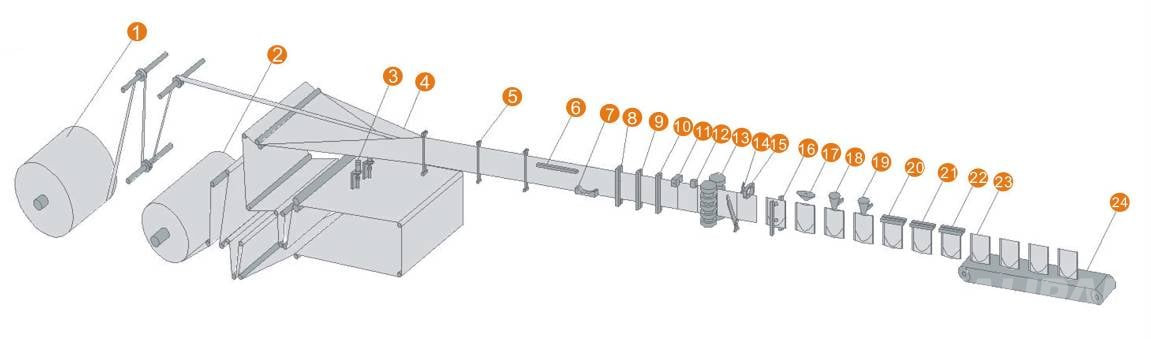

Packaging Process:

1. Zipper Release(Optional) 2. Film unwinding 3. Bottom Hole Punching 4. Pouch Forming 5. Film Guide 6. Horizontal Zipper Seal(Optional) 7. Bottom Seal 8. Vertical Zipper Seal(Optional) 9. Vertical Seal I 10. Vertical Seal II 11. Tear Notch 12. Photocell	13. Servo Advance 14. Cutting 15. Pouch Catching 16. Pouch Opening 17. Air Flushing 18. Filling I 19. Filling II 20. Top Seal I 21. Top Seal II 22. Top Seal III 23. Finished Product 24. Outlet

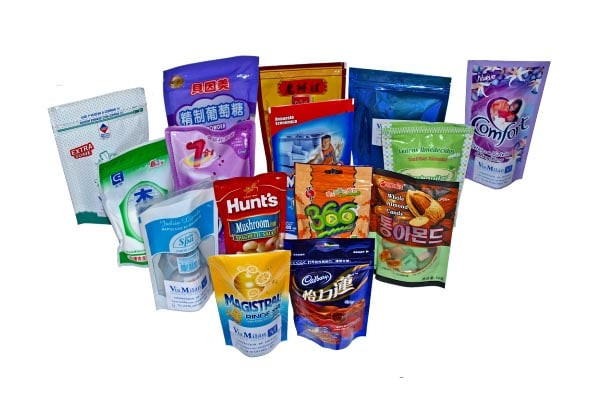

Packaging Photos:

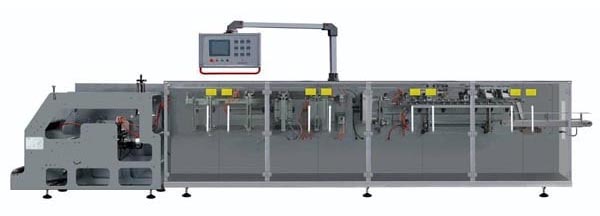

QP-180 packaging main machine standard configuration:

1. A film reel auto-alignment shaft

2. One set of bottom seal Unit

3. V-sharp Standard Unit

4. An independent bag former

5. Three sets of horizontal sealing unit

6. Two set of vertical sealing unit

7. Servo pouch puller

8. Mechanical scissors

9. Easy tearing notch cutter

10. Set of vacuum bag opening device

11. Automatic material-level control system

12. A Photocell tracking control system

13. A LCD touch-control operation system

14. A PLC control system

15. An automatic control system

16. A 10-digital cold embosser

17. A product outlet system

18. An operation manual in English

Technical Parameter

• Pouch Width                                        90-180mm
• Pouch Length                                  110-270mm
• Max Volume                                         1000ml     Œ
• Speed                                                    50-60 pouch/min.    
• Accuracy                                               Based on Filling System   Ž
• Reel                                                       600mm
• Electricity Consumption                    8KW
• Air Consumption                                 0.7m³/min
• Weight                                                  2000KG
• Size (L×W×H)                                  6200mm×1100mm×1500mm     



ΠEstimated volume size, actual volume depends on actual material

 Speed calculation is based on empty sachet without filling, filling may cause speed variation

Ž Based on filling system

 Estimated dimension without any accessory add on

Main Machine Electrical and Pneumatic Components

Main Components	Vendor
PLC	Mitsubishi Japan
Touch Screen	Mitsubishi Japan
Inverter	Mitsubishi Japan
Servo Motor	Panasonic Japan
Photocell	Autonics Korea
Main Motor	ABB Switzerland
Pneumatic Parts	Airtac Taiwan
Vacuum Generator	SMC Japan
